避雷器型号
|
系统额定电压
|
避雷器额定电压
|
持续运行电压
|
直流参考电压(U1mA)
|
陂波冲击电流下残压
|
雷电冲击电流下残压
|
操作冲击电流下残压
|
方波通流容量(2ms)
|
大电流冲击耐受
|
图号
|
kV(r.m.s)
|
≮kV
|
≯kV
|
A
|
kA
|
||||||
HY5WS-3.8/15*
|
3
|
3.8
|
2.0
|
7.5
|
17.3
|
15
|
12.8
|
75
|
40
|

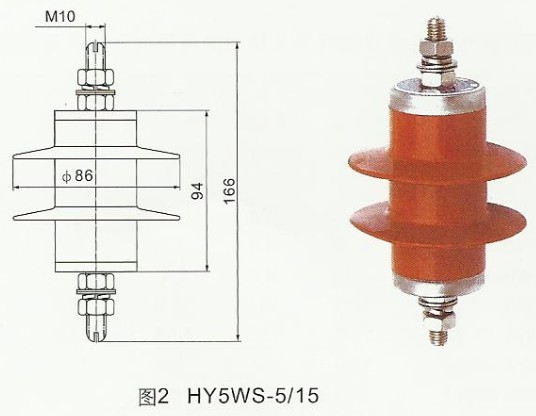

图2
|
HY5WS-5/15
|
5
|
4.0
|
8.0
|
17.3
|
15
|
12.8
|
100
|
65
|
||
HY5WS-7.6/30*
|
6
|
7.6
|
4.0
|
15.0
|
34.5
|
30
|
25.5
|
75
|
40
|

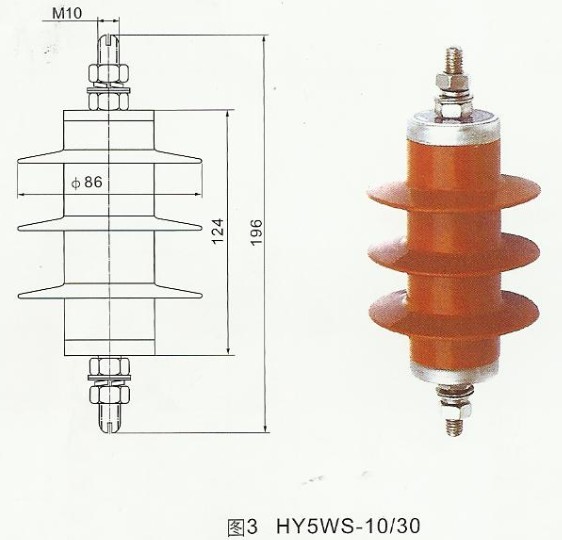

图3
|
HY5WS-10/30
|
10
|
8.0
|
15.0
|
34.5
|
30
|
25.5
|
100
|
65
|
||
HY5WS-12.7/50*
|
10
|
12.7
|
6.6
|
25.0
|
57.5
|
60.0
|
38.5
|
75
|
40
|

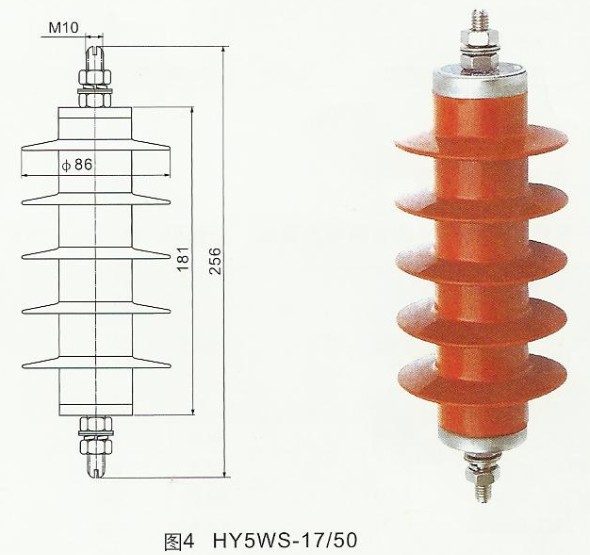

图4
|
HY5WS-17/50
|
17
|
13.6
|
25.0
|
57.5
|
60.0
|
38.5
|
100
|
65
|
